EM-3350 Cutaway Model of Electrical Machine

Model : EM-3350

    Cutaway models are made from normal electrical machines. The stator is cut away by 1/4 over the entire length for an optimum view of the internal construction of the machine and it is still operating. The cutaway surfaces are protected against corrosion.

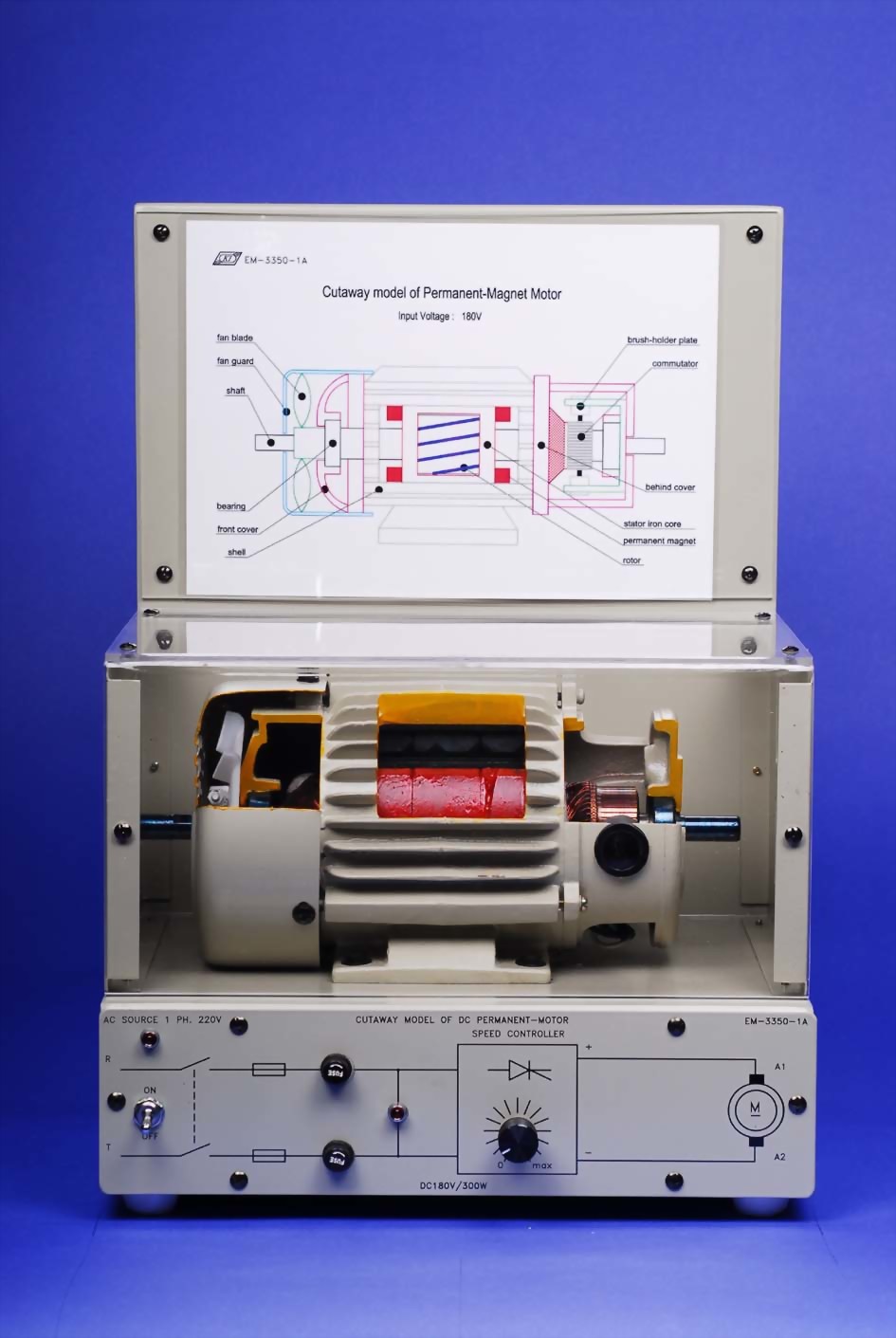

EM-3350-1A

DC Permanent-magnet Motor



EM-3350-3A

Three-phase Salient Pole Synchronous Motor


EM-3350-1C

Single-phase Induction Motor


EM-3350-3B

Three-phase Rotor Winding Motor

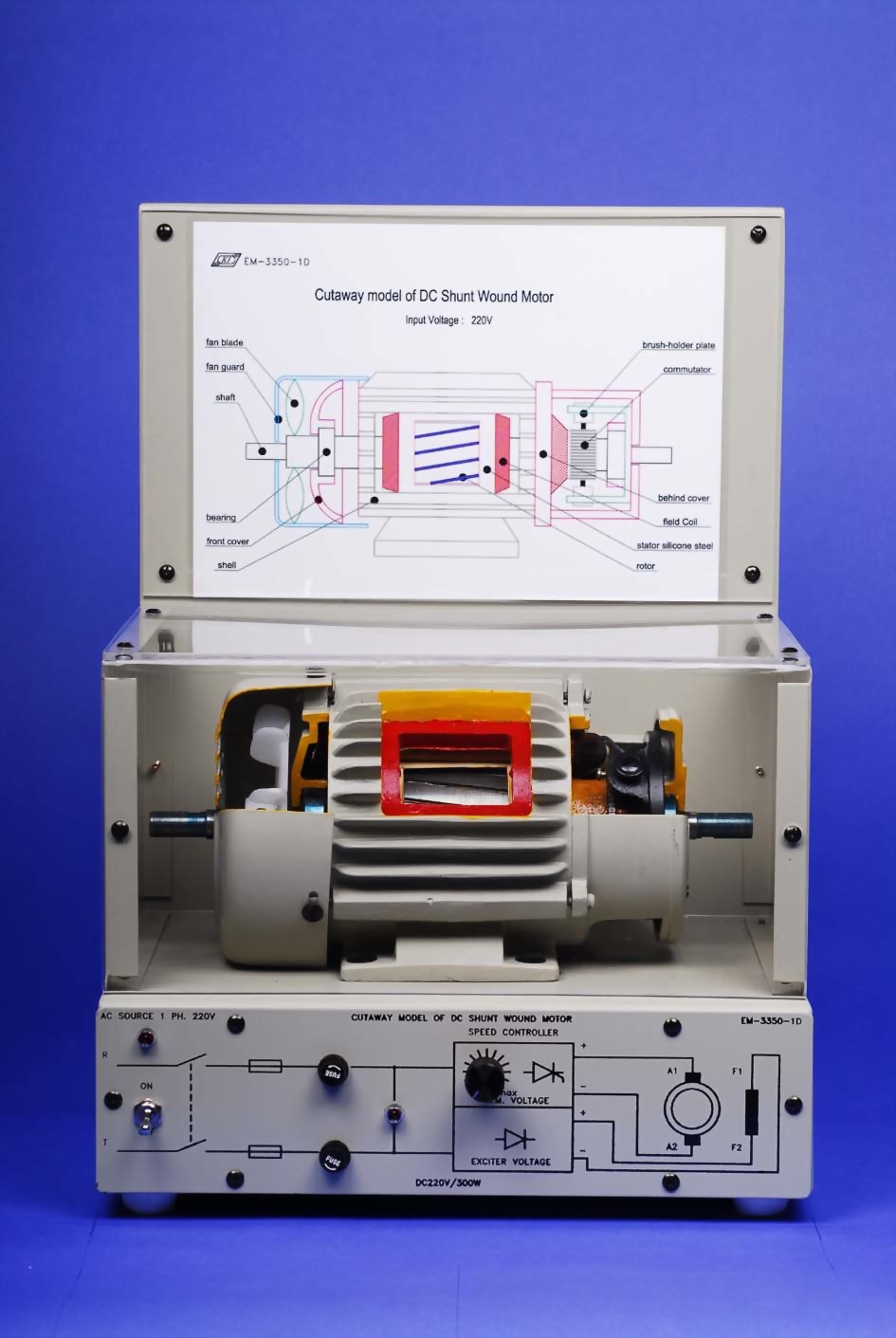

EM-3350-1D

DC Shunt Wound Motor

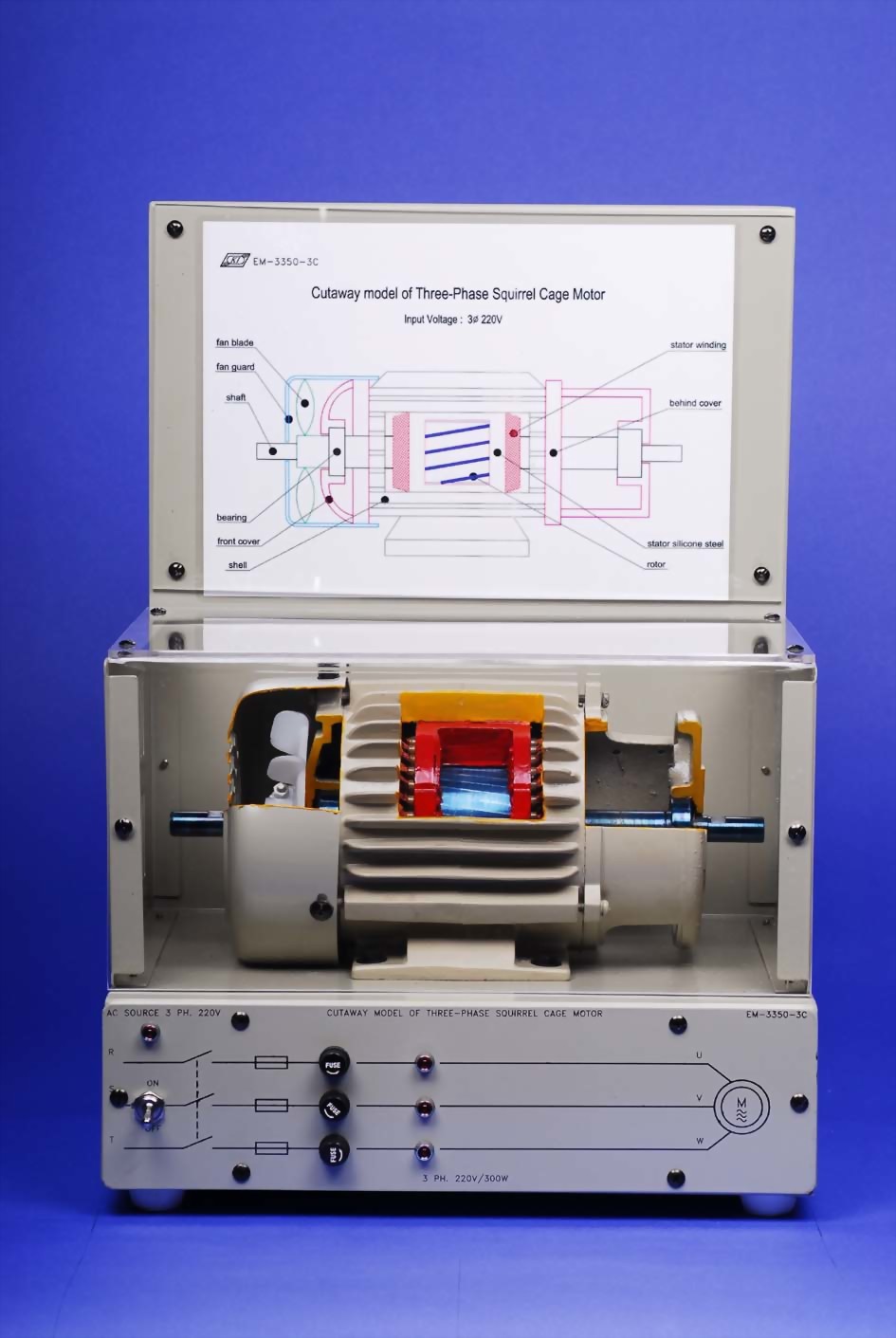

EM-3350-3C

Three-phase Squirrel Cage Motor



EM-3350-1F

DC Compound Wound Motor




Remark : System Transformer is provided at extra charge for the area where 3-phase 220V power is not available.
