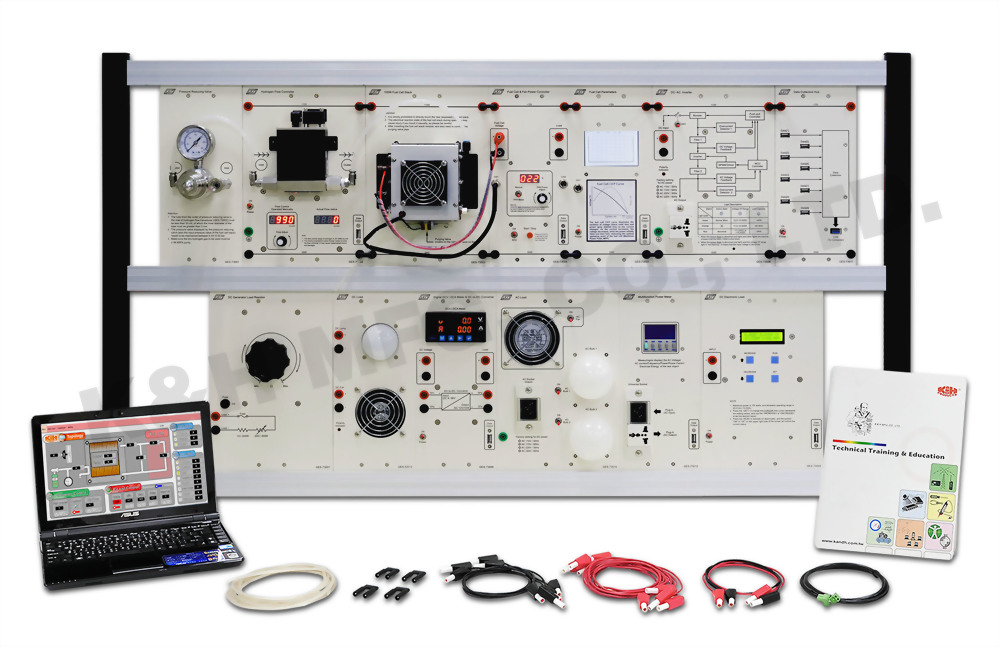

The GES-700 can help students and researchers gain a deep understanding of the working principles of PEM fuel cells. This educational device not only demonstrates how fuel cells convert hydrogen and oxygen into electrical energy but also allows users to explore their operational characteristics and efficiency through experiments. With this equipment, users can learn about the structure, operation process, and performance under various conditions. It provides valuable resources for education and research by offering both theoretical knowledge and hands-on experience.

1. Characteristic curve of a fuel cell

2. The Impact of Air Supply on the Characteristic Curves of Fuel Cell

3. The Impact of Internal Resistance on the Characteristic Curves of Fuel Cell

4. The Impact of Temperature on the Characteristic Curves of Fuel Cell

5. The Relationship Between Fuel and Current Curves

6. The Efficiency of a Fuel Cell Stack

7. Off-Grid Fuel Cell System for Powering Street Lights

8. The Relationship Between the Fuel Cell System and Parasitic Loads

9. Exploring the Efficiency and Relationship of DC/DC Converter

10. Exploring the Efficiency and Relationship of DC/AC Inverter

11. Calculation of Overall Efficiency

1. An open system architecture & a flexible panel designed for easy replacement of parts

2. The system can be controlled manually or by computer.

3. Cells are self-humidifying and do not require any type of external humidification.

4. Touch screen for monitoring system parameters.

5. Safety plugs are equipped with all the input and output terminals for the purpose of easy and safe connection during experiments.

3. Instant graph plotting to convey fundamental principles.
