IOT-100 Innovative IoT Experiment Platform

Model : IOT-100

     With the advent of IoT (Internet of Things), more physical objects are connected to internet to make everyday life easier. Topics about creating a user-friendly IoT experience become popular to IoT solution providers.

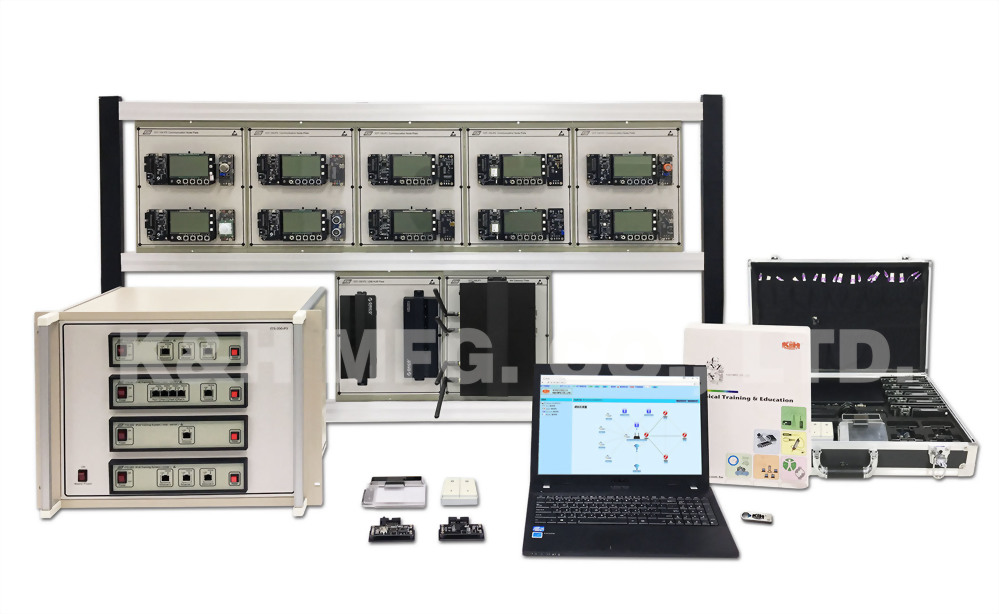

     The Innovative IoT Experiment Platform (IOT-100) is a module-based solution to IoT experiment systems. It is constructed by various communication node boards, sensor modules, wireless integrated gateway, and open-source applications. The experiment topics include not only traditional “wireless sensing technology”, but also embedded system development, intelligent sensing technology, IoT composition technology, IoT chip control technology, and IoT engineering applications.
     IOT-100 adopts 4 different wireless protocols: ZigBee, Bluetooth, WiFi, and EnOcean. Users can select one (or more) wireless sensing technology and transmit data to wireless integrated gateway via MQTT (Message Queuing Telemetry Transport) protocol for observation.
    The functions of the Wireless Integrated Gateway are acquisition, packaging, and transmission of data. The data is transmitted to the cloud using MQTT protocol. On the webpage, students can observe the experiment results of data acquired from the wireless sensing node boards and sensor modules.

iot training equipment, cloud based telephony

1. Network Chip





ZigBee

WiFi

Bluetooth

EnOcean

Fundamental
experiments

1

IAR project
establishing experiment

IAR project
establishing experiment

IAR project
establishing experiment

IAR project establishing experiment

2

GPIO experiment

GPIO experiment

GPIO experiment

GPIO experiment

3





Watchdog experiment



4

I2C experiment

I2C experiment

I2C experiment

I2C experiment

5

GPIO interrupt experiment

GPIO interrupt experiment

GPIO interrupt experiment

GPIO interrupt experiment

6

ADC experiment

ADC experiment

ADC experiment

ADC experiment

7

Timer experiment

Timer experiment

Timer experiment

Timer experiment

8



Hibernation experiment



9

UART experiment

UART experiment

UART experiment

UART experiment

10

SSI experiment

SSI experiment

SSI experiment

SSI experiment

11

USB to Serial experiment



USB to Serial experiment

USB to Serial experiment

12

Smart sensor module  experiment

Smart sensor module  experiment

Smart sensor module experiment

Smart sensor module  experiment

Communication
experiments

1

Peer to peer communication experiment

WLAN station example experiment

HID: Human Interface Device Profile experiment



2

Power Transmission setup experiment

WLAN AP example experiment

ANP: Alert Notification Profile experiment



3

Wireless channel setup experiment



HRS: Heart Rate Service Profile experiment



4

Wireless monitoring experiment





5

ACK Response experiment







At least 2 ZigBee sensing node boards for communication experiments.

  At least 2 WiFi sensing node boards for communication experiments.

  At least 2 Bluetooth sensing node boards for  communication experiments.



Comprehensive experiments

1

Star network topology experiment







2

Mesh network topology experiment







3

Grouping control experiment







4

Binding Control Experiment









At least 5 ZigBee sensing node boards for comprehensive  experiments.







Remark: please refer to above ※ for minimum quantity of node boards required for Communication experiments.

2. Integrated Experiment
(1) IPv6 Host - Client
Exp 1: Configuration settings
Exp 2: IPv6 Packet sniffer

(2) IPv6 Host - Server
Exp 1: IPv6 DHCP
Exp 2: IPv6 DNS
Exp 3: IPv6 Web service
Exp 4: IPv6 Mail service
Exp 5: IPv6 FTP service

(3) IPv6 Router
Exp 1: Static routing
Exp 2: Dynamic routing (RIPng)
Exp 3: Dynamic routing (OSPFv3)

(4) IPv6 Integration experiments:
Exp 1: Network topology
Exp 2: Network segment and IP address
Exp 3: Routing rule
Exp 4: Observes HTTP Packet
Exp 5: Observes remote packets via ITS-201

(5) IOT-100 + IPv6 Integration experiments:
Exp 1: Integrates network topology
Exp 2: IPv4 and IPv6 Network settings
Exp 3: IOT-100 Configuration setting
Exp 4: IOT-100 + IPv6 Integrated demonstration
Exp 5: IOT-100 Packet sniffer
