LP-2800/LP-3500 Logic Probe

Model : LP-2800/LP-3500

Common Specifications
1.  Input impedance 1MΩ
2.  Width of min. pulse : 30ns
3.  Max. input frequency : 17MHz
4.  Measurable logic gate
     (1) Logic 1 (red LED lights) and buzzer :
           TTL : 2.3V ±0.2V
           CMOS : 70%Vcc
     (2) Logic 0 (green LED lights) and buzzer :
          TTL : 0.8V ±0.2V
          CMOS : 30%Vcc
5.  Input overvoltage protection : ±220V DC / AC 15sec
6.  Pulse (yellow LED) flashing time : 500ms
7.  Power supply protection : ±20V


 DIMENSION  WEIGHT
212 x 26.5 x 18mm (main body) 65g
235 x 78 x 32mm (with case) 210g



Special functions for LP-3500
1.  ABS case
2.  Two audio tones
3.  Two external terminals
     They are also available for LP-2800 but at an extra charge.

Related Products

Jump Wire & Jump Wire Set

Jump Wire & Jump Wire Set

Optional Small Wire Set with Standard Breadboard Package

Optional Small Wire Set with Standard Breadboard Package

LA-60 Breadboard for Brick, ARDUINO

LA-60 Breadboard for Brick, ARDUINO

LP-540H Logic Pulser

LP-540H Logic Pulser

LP-1001 Logic Probe

LP-1001 Logic Probe

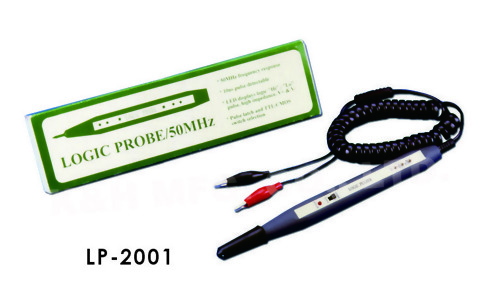

LP-2001 Logic Pulser
