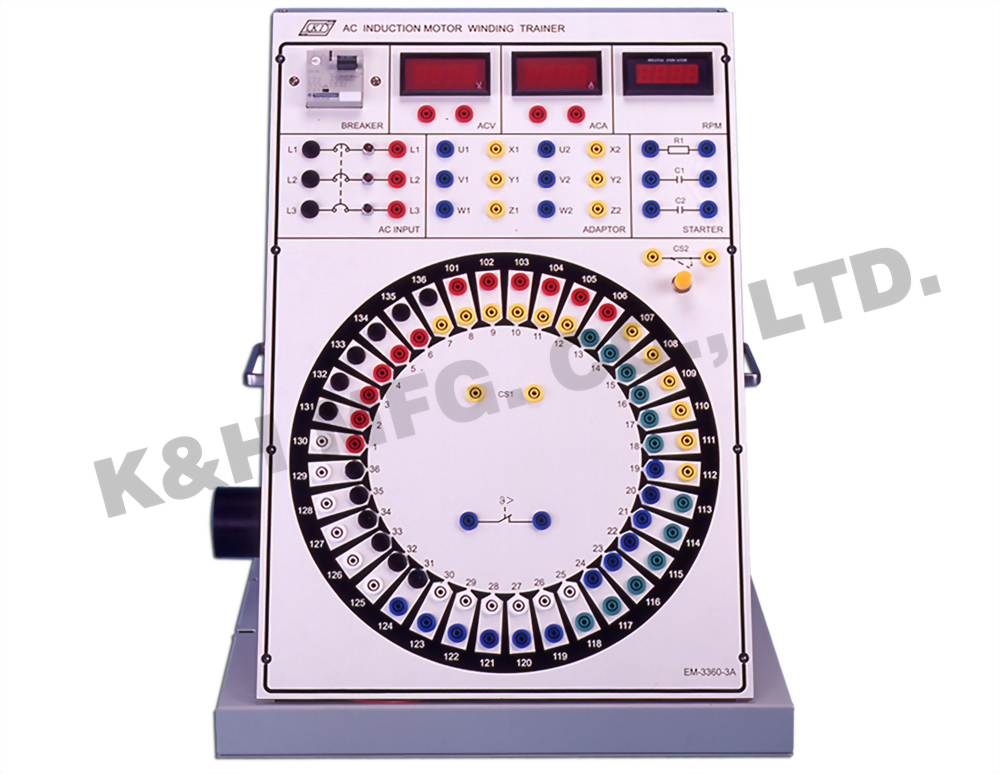

EM-3360-3A AC Induction Motor Winding Trainer

Model : EM-3360-3A

    EM-3360-3A  AC Induction Motor Winding Trainer can be configured for various poles as the self-starting three-phase induction motor and single-phase induction motor which is used with the resistor or capacitor starting.


    Students can learn the different  types of motor winding through the simple winding connection. In addition, with external load torque provided by Magnetic Powder Brake Unit (EM-3320-1C), Brake Controller  (EM-3320-1N) and Three-phase Power Supply (EM-3310-1E), students can see the characteristics of different types of motor.


Plug-in Panel (Optional)


1.  Single-phase 2-pole induction motor
      With optional panel EM-3360-3A, 1ø 2P-A
     ● With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Capacitor start induction motor
         - Capacitor run induction motor
2.  Single-phase 4-pole induction motor
      With optional panel EM-3360-3A, 1ø 4P-A
      With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Capacitor start induction motor
         - Capacitor run induction motor
3.  Single-phase 6-pole induction motor
      With optional panel EM-3360-3A, 1ø 6P-A
      With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Capacitor start induction motor
         - Capacitor run induction motor
4.  Three-phase 2-pole induction motor
      With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Series-Wye-Connected induction motor
         - Series-Delta-Connected induction motor
         - Parallel-Wye-Connected induction motor
5.  Three-phase 4-pole induction motor
      With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Series-Wye-Connected induction motor
         - Series-Delta-Connected induction motor
         - Parallel-Wye-Connected induction motor
6.  Three-phase 6-pole induction motor
      With EM-3310-1E, EM-3320-1N and EM-3320-1C for external mechanical load:
         - Series-Wye-Connected induction motor
1. Use 4mm safety socket terminal
2. The clearly- printed winding set codes and colorful wire on top allow user to do winding and operation easily
3. The power input with the motor circuit breaker
4. Easy linking to brake controller unit for measure and draw the characteristics of each winding motor through PC
5. Plug-in panel helps teachers complete the experiments easily and quickly (Optional)
